1. 𝐋𝐨𝐜𝐤𝐢𝐧𝐠 𝐚𝐧𝐝 𝐑𝐚𝐜𝐞 𝐂𝐨𝐧𝐝𝐢𝐭𝐢𝐨𝐧𝐬
𝐑𝐚𝐜𝐞 𝐂𝐨𝐧𝐝𝐢𝐭𝐢𝐨𝐧𝐬:
▪️ A race condition occurs when multiple threads/processes access shared resources simultaneously without proper synchronization.
▪️ Can lead to data corruption, inconsistent states, and unpredictable behavior.

Example of a Race Condition:
Thread 1       Thread 2
——–      ——–
read value X=5
read value X=5
increment X=6
increment X=6
write back X
write back X
// X is incremented only once instead of twice!

𝐓𝐲𝐩𝐞𝐬 𝐨𝐟 𝐋𝐨𝐜𝐤𝐬 𝐢𝐧 𝐋𝐢𝐧𝐮𝐱:
Mutex
Spinlock
RW Semaphore
RCU (Read-Copy-Update)
Sequence Lock

2. 𝐅𝐨𝐫𝐤 𝐎𝐩𝐞𝐫𝐚𝐭𝐢𝐨𝐧 𝐢𝐧 𝐋𝐢𝐧𝐮𝐱
𝐖𝐡𝐚𝐭 𝐢𝐬 𝐟𝐨𝐫𝐤()?
▪️ Creates a new process by duplicating the calling process
▪️ Child process gets a copy of parent’s memory space
▪️ Copy-on-Write (CoW) optimization used

𝐅𝐨𝐫𝐤 𝐒𝐭𝐞𝐩𝐬 :
Create new task structure
Copy process credentials
Create new memory descriptor
Copy page tables
Copy VMAs (Virtual Memory Areas)
Setup CoW mechanisms
Copy file descriptors
Copy other resources

𝐊𝐞𝐲 𝐂𝐨𝐝𝐞 𝐏𝐚𝐭𝐡:
sys_fork()
→ kernel_clone()
→ copy_mm()
→ dup_mm()
→ dup_mmap() // 𝐕𝐌𝐀 𝐜𝐨𝐩𝐲𝐢𝐧𝐠 𝐡𝐚𝐩𝐩𝐞𝐧𝐬

3. 𝐕𝐌𝐀 𝐑𝐚𝐜𝐞 𝐂𝐨𝐧𝐝𝐢𝐭𝐢𝐨𝐧 𝐚𝐧𝐝 𝐅𝐢𝐱
𝐕𝐢𝐫𝐭𝐮𝐚𝐥 𝐌𝐞𝐦𝐨𝐫𝐲 𝐀𝐫𝐞𝐚𝐬 (𝐕𝐌𝐀𝐬):
▪️ Represent contiguous virtual memory regions
▪️ Contain permissions, flags, and mapping information
▪️ Managed in mm_struct of each process

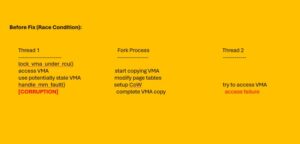

▪️ The Race Condition:
▪️ Problem scenario during fork:

𝐂𝐨𝐝𝐞 (𝐰𝐢𝐭𝐡 𝐫𝐚𝐜𝐞, 𝐢𝐧 𝐦𝐮𝐥𝐭𝐢𝐭𝐡𝐫𝐞𝐚𝐝 𝐬𝐜𝐞𝐧𝐚𝐫𝐢𝐨 ) –

vma = lock_vma_under_rcu(mm, address);
fault = handle_mm_fault(vma, address, flags);

vma_end_read(vma); // Release too early

if (!(fault & VM_FAULT_RETRY)) {
// Check conditions after release
}

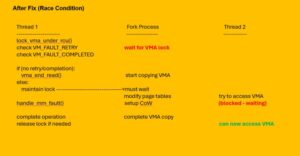

𝐅𝐢𝐱𝐞𝐝 𝐜𝐨𝐝𝐞 –

vma = lock_vma_under_rcu(mm, address);
fault = handle_mm_fault(vma, address, flags);

if (!(fault & (VM_FAULT_RETRY | VM_FAULT_COMPLETED)))
vma_end_read(vma); // Only release if no retry/completion needed

𝐑𝐞𝐩𝐫𝐨𝐝𝐮𝐜𝐞𝐫 𝐏𝐫𝐨𝐠𝐫𝐚𝐦:

// Example of problematic code pattern
for (i = 0; i != 2; i += 1)
clone(&thread, &stacks[i] + 1, CLONE_THREAD | CLONE_VM | CLONE_SIGHAND, NULL);
while (1) {
if (fork() == 0) _exit(0);
(void)wait(NULL);
}

In cybersecurity, Return-Oriented Programming (ROP) and Jump-Oriented Programming (JOP) are techniques that allow attackers to hijack a program’s control flow. These attacks reuse existing code snippets (gadgets) instead of injecting new code, making them harder to detect and defend against.

𝐑𝐞𝐭𝐮𝐫𝐧-𝐎𝐫𝐢𝐞𝐧𝐭𝐞𝐝 𝐏𝐫𝐨𝐠𝐫𝐚𝐦𝐦𝐢𝐧𝐠 (𝐑𝐎𝐏):
ROP exploits buffer overflow vulnerabilities to overwrite a function’s return address, redirecting execution to gadgets in memory.

𝐉𝐮𝐦𝐩-𝐎𝐫𝐢𝐞𝐧𝐭𝐞𝐝 𝐏𝐫𝐨𝐠𝐫𝐚𝐦𝐦𝐢𝐧𝐠 (𝐉𝐎𝐏)
JOP is similar but targets indirect jumps instead of returns, making it more versatile than ROP.

These attacks bypass traditional defenses like DEP (Data Execution Prevention) and ASLR (Address Space Layout Randomization), requiring more advanced protection techniques.

🔐 𝐏𝐫𝐨𝐭𝐞𝐜𝐭𝐢𝐧𝐠 𝐀𝐠𝐚𝐢𝐧𝐬𝐭 𝐑𝐎𝐏 𝐚𝐧𝐝 𝐉𝐎𝐏 🔐

1️⃣ Control-Flow Integrity (CFI):
CFI ensures that function calls and jumps in a program only occur at valid, predefined locations, preventing attacks like ROP and JOP.

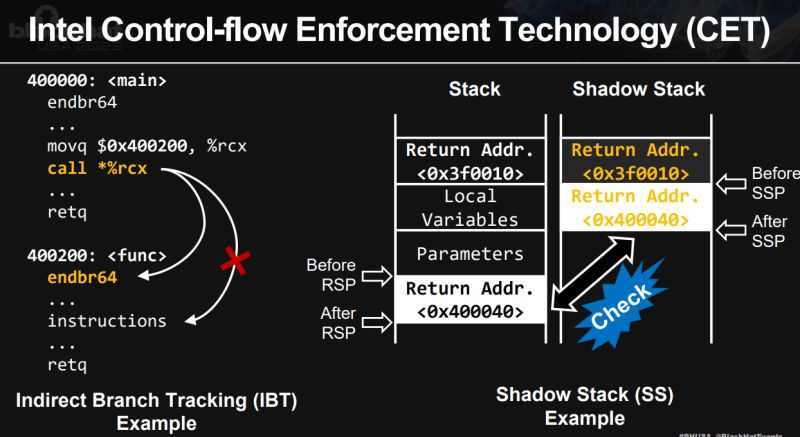

2️⃣ Intel Control-Flow Enforcement Technology (CET):
Intel’s CET is a hardware-based defense with two key components:
Indirect Branch Tracking (IBT): Ensures indirect branches target valid locations marked with ENDBR instructions.
𝐒𝐡𝐚𝐝𝐨𝐰 𝐒𝐭𝐚𝐜𝐤 (𝐒𝐒): Verifies return addresses match expected values.
CET offers strong protection with minimal performance overhead.

hashtag#KernelConfiguration
CONFIG_X86_IBT=y # Enable Intel IBT
CONFIG_CPU_UNRET_ENTRY=y # Enable CET shadow stack

hashtag#Forx86
CONFIG_X86_IBT=y # Intel IBT
CONFIG_X86_KERNEL_IBT=y # Kernel IBT support

3️⃣ Clang/LLVM kCFI:
For environments lacking hardware support, Clang/LLVM kCFI provides software-based protection by adding control-flow checks at compile time.

CONFIG_CFI_CLANG=y # Enable Clang CFI
CONFIG_CFI_PERMISSIVE=n # Strict mode (not permissive)
CONFIG_CFI_CLANG_SHADOW=y # Enable shadow call stack

⚠️ 𝐖𝐞𝐚𝐤𝐧𝐞𝐬𝐬𝐞𝐬 𝐢𝐧 𝐊𝐞𝐫𝐧𝐞𝐥 𝐂𝐅𝐈 𝐃𝐞𝐟𝐞𝐧𝐬𝐞𝐬 – 𝐏𝐎𝐏 ⚠️

While CFI, Intel CET, and Clang/LLVM kCFI offer strong protections, 𝐏𝐚𝐠𝐞-𝐎𝐫𝐢𝐞𝐧𝐭𝐞𝐝 𝐏𝐫𝐨𝐠𝐫𝐚𝐦𝐦𝐢𝐧𝐠 (𝐏𝐎𝐏) 𝐛𝐲𝐩𝐚𝐬𝐬𝐞𝐬 𝐭𝐡𝐞𝐬𝐞 𝐝𝐞𝐟𝐞𝐧𝐬𝐞𝐬. POP exploits writable page tables in kernel memory, allowing attackers to remap pages and create new control flows using legitimate code within the kernel. This makes it harder for current CFI mechanisms to detect or block the exploit.

For more info – https://shorturl.at/tNKml

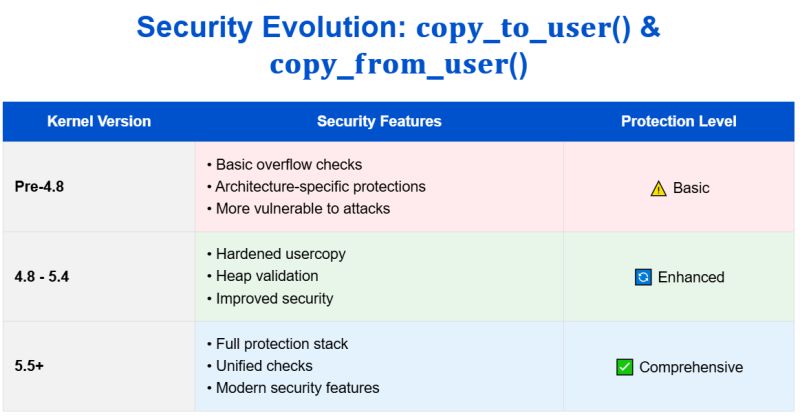

Every kernel developer, from beginner to expert, will encounter these fundamental functions. Handling one of the most critical operations in Linux: secure data transfer between user space and kernel space.

copy_from_user() // Userspace → Kernel
copy_to_user()  // Kernel → Userspace

1. 2002: The Early Days – Simple but Dangerous (Linux 2.4)

static __inline__ unsigned long copy_from_user(void *to, const void *from, unsigned long n)
{
if (access_ok(VERIFY_READ, from, n))
__do_copy_from_user(to, from, n);
else
memzero(to, n);  // Dangerous with negative n!
return n;
}

Why Changed:
– Initial attempt at memory safety
– Could wipe gigabytes with negative numbers
– No size validation

2. 2005: First Size Check (Linux 2.6)

static inline int copy_from_user(…) {
if (unlikely(n > INT_MAX))
BUG();  // Hard stop for large sizes
return __copy_from_user(to, from, n);
}

Why Changed:
– Added overflow protection
– Prevented large buffer attacks

3. 2009: Compiler-Assisted Protection (Linux 2.6)
static inline unsigned long copy_from_user(void *to, const void __user *from, unsigned long n)
{
int sz = __compiletime_object_size(to);
int ret = -EFAULT;

if (likely(sz == -1 || sz >= n))
ret = _copy_from_user(to, from, n);
else
WARN(1, “Buffer overflow detected!\n”);
return ret;
}

Why Changed:
– Added compile-time checks
– Buffer overflow detection
– x86 architecture improvements

4. 2013: copy_to_user Enhancement (Linux 3.13)

static inline unsigned long copy_to_user(void __user *to, const void *from, unsigned long n)
{
int sz = __compiletime_object_size(from);
might_fault();

if (likely(sz < 0 || sz >= n))
n = _copy_to_user(to, from, n);
else if(__builtin_constant_p(n))
copy_to_user_overflow();
else
__copy_to_user_overflow(sz, n);
return n;
}

Why Changed:
– Symmetric protection for data output
– Prevented kernel data leaks
– Better compile-time validations

5. 2016: The Hardening Revolution (Linux 4.8)

static __always_inline bool check_copy_size(const void *addr, size_t bytes, bool is_source)
{
int sz = __compiletime_object_size(addr);
if (unlikely(sz >= 0 && sz < bytes)) {
if (!__builtin_constant_p(bytes))
copy_overflow(sz, bytes);
return false;
}
check_object_size(addr, bytes, is_source);
return true;
}

Why Changed:
– Complete heap validation
– Object bounds checking
– Architecture-independent security

6. 2019: Modern Protection (Linux 5.5)

static __always_inline bool check_copy_size(const void *addr, size_t bytes, bool is_source)
{
// Previous checks plus:
if (WARN_ON_ONCE(bytes > INT_MAX))
return false;
check_object_size(addr, bytes, is_source);
return true;
}

For more Info –
https://lnkd.in/gG6WrCCV

How the Linux kernel efficiently manages millions of small object allocations? Let’s dive deep into the SLUB (Simple List of Used Blocks) allocator, the 𝐛𝐚𝐜𝐤𝐛𝐨𝐧𝐞 𝐨𝐟 𝐋𝐢𝐧𝐮𝐱 𝐤𝐞𝐫𝐧𝐞𝐥 𝐦𝐞𝐦𝐨𝐫𝐲 𝐦𝐚𝐧𝐚𝐠𝐞𝐦𝐞𝐧𝐭! 🐧

𝐓𝐞𝐜𝐡𝐧𝐢𝐜𝐚𝐥 𝐃𝐞𝐞𝐩-𝐃𝐢𝐯𝐞:

𝐂𝐨𝐫𝐞 𝐀𝐫𝐜𝐡𝐢𝐭𝐞𝐜𝐭𝐮𝐫𝐞 🏗️
The SLUB allocator implements a sophisticated multi-tiered strategy:

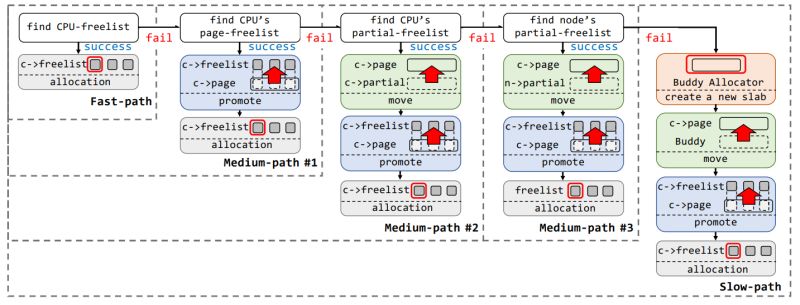

𝐀𝐥𝐥𝐨𝐜𝐚𝐭𝐢𝐨𝐧 𝐏𝐚𝐭𝐡𝐬
🚀 Fast-path (Primary):

if (likely(freelist)) {
return freelist; // Direct hit: ~10-20 cycles
}

⚡ Medium-paths:
– CPU page-freelist
– Partial lists
– Node-level operations
– Typical overhead: 100-500 cycles

🔄 Slow-path (Fallback):
– Buddy allocator interaction
– Full page allocation
– Slab initialization
– Cost: 1000+ cycles

2. 𝐀𝐝𝐯𝐚𝐧𝐜𝐞𝐝 𝐅𝐞𝐚𝐭𝐮𝐫𝐞𝐬 🛠️

▪️ Memory Organization:

struct kmem_cache {
struct kmem_cache_cpu __percpu *cpu_slab;
unsigned long flags;
int size;    // The size of objects
int object_size; // Aligned object size
int offset;   // Free pointer offset
};

▪️ Security Mechanisms:
🛡️ Protection Features:
– Freelist pointer encryption
– Memory poisoning (0xA5)
– Red-zoning for overflow detection
– FreeList randomization

3. 𝐃𝐞𝐛𝐮𝐠𝐠𝐢𝐧𝐠 & 𝐌𝐨𝐧𝐢𝐭𝐨𝐫𝐢𝐧𝐠 🔍

▪️ Runtime Analysis:

Enable debugging
echo 1 > /sys/kernel/slab/kmalloc-1024/trace

Monitor statistics
cat /proc/slabinfo

▪️ 𝐏𝐞𝐫𝐟𝐨𝐫𝐦𝐚𝐧𝐜𝐞 𝐓𝐨𝐨𝐥𝐬:
– kmem_cache_flags
– slabinfo statistics
– Memory leak tracking
– Allocation pattern analysis

4. 𝐑𝐞𝐚𝐥-𝐖𝐨𝐫𝐥𝐝 𝐀𝐩𝐩𝐥𝐢𝐜𝐚𝐭𝐢𝐨𝐧𝐬 💻

▪️ Common Use Cases:
– Network packet buffers (skbuff)
– File system caches (dentry, inode)
– Process descriptors (task_struct)
– Device driver allocations

▪️ Performance Impact:
– Critical path optimization
– Cache-line alignment
– NUMA awareness
– Memory fragmentation prevention

5. 𝐁𝐞𝐬𝐭 𝐏𝐫𝐚𝐜𝐭𝐢𝐜𝐞𝐬 & 𝐓𝐢𝐩𝐬 📌

▪️ Development Guidelines:
– Align object sizes to cache lines
– Use appropriate GFP flags
– Implement proper error handling
– Consider NUMA topology

▪️ Troubleshooting:
– Memory leak detection
– Fragmentation analysis
– Performance profiling
– Debug flag usage

💡𝐓𝐢𝐩𝐬:
1. Use SLAB_HWCACHE_ALIGN for hot paths
2. Implement bulk allocation for better performance
3. Consider using per-CPU caches for high-frequency allocations
4. Monitor partial lists for fragmentation

𝐑𝐞𝐚𝐥-𝐖𝐨𝐫𝐥𝐝 𝐈𝐦𝐩𝐚𝐜𝐭:
– Critical for container orchestration
– Essential for high-performance networking
– Fundamental to filesystem performance
– Key to system stability

Ever wondered how to execute code before main() or perform cleanup after program exit in C? Let’s explore GCC’s powerful constructor and destructor attributes!

𝐊𝐞𝐲 𝐓𝐞𝐜𝐡𝐧𝐢𝐜𝐚𝐥 𝐈𝐧𝐬𝐢𝐠𝐡𝐭𝐬:

1. Section Control:
– Use __attribute__((constructor)) and __attribute__((destructor)) to define functions that run before/after main()
– Create custom sections using __attribute__((section(“.init”))) for specialized initialization

2. 𝐄𝐱𝐞𝐜𝐮𝐭𝐢𝐨𝐧 𝐎𝐫𝐝𝐞𝐫:
📊 Priority Sequence:
– .init section (highest priority)
– Constructor functions (by priority)
– main()
– Destructor functions (reverse priority)
– .fini section

3. 𝐏𝐫𝐢𝐨𝐫𝐢𝐭𝐲 𝐌𝐚𝐧𝐚𝐠𝐞𝐦𝐞𝐧𝐭:
– Range: 0-100 reserved for system use
– Custom priorities should use values >100
– Example: __attribute__((constructor(101))) for user-defined ordering

4. 𝐏𝐫𝐚𝐜𝐭𝐢𝐜𝐚𝐥 𝐀𝐩𝐩𝐥𝐢𝐜𝐚𝐭𝐢𝐨𝐧𝐬:
– Library initialization/cleanup
– Resource management
– Plugin architectures
– Dynamic module loading
– Global state setup/teardown

💡 Pro Tip: You can combine these with static initialization to create powerful startup sequences and guarantee cleanup, similar to C++ constructors but with more fine-grained control.

𝐂𝐡𝐞𝐜𝐤 𝐨𝐮𝐭 𝐨𝐮𝐫 𝐯𝐢𝐝𝐞𝐨 𝐬𝐞𝐬𝐬𝐢𝐨𝐧 𝐡𝐞𝐫𝐞:
https://lnkd.in/gUrX2bSw

𝐄𝐱𝐚𝐦𝐩𝐥𝐞 𝐂𝐨𝐝𝐞 𝐒𝐧𝐢𝐩𝐩𝐞𝐭:
“`c
__attribute__((constructor(101)))
void early_init() {
// Called before main with high priority
}

__attribute__((section(“.init”)))
void very_early_init() {
// Called even before constructors
}

__attribute__((destructor(102)))
void cleanup() {
// Guaranteed to run on program exit
}
